技術特征

機座范圍	H80~280	功率范圍	0.18~90kW
額定電壓	380V（特殊電壓定制）	額定頻率	50Hz（特殊頻率定制）
極數	2、4、6、8	防護等級	IP54
冷卻方式	IC411	絕緣等級	H
工作方式	S1	安裝方式	B3、B5、B35
接線方式	Y/?

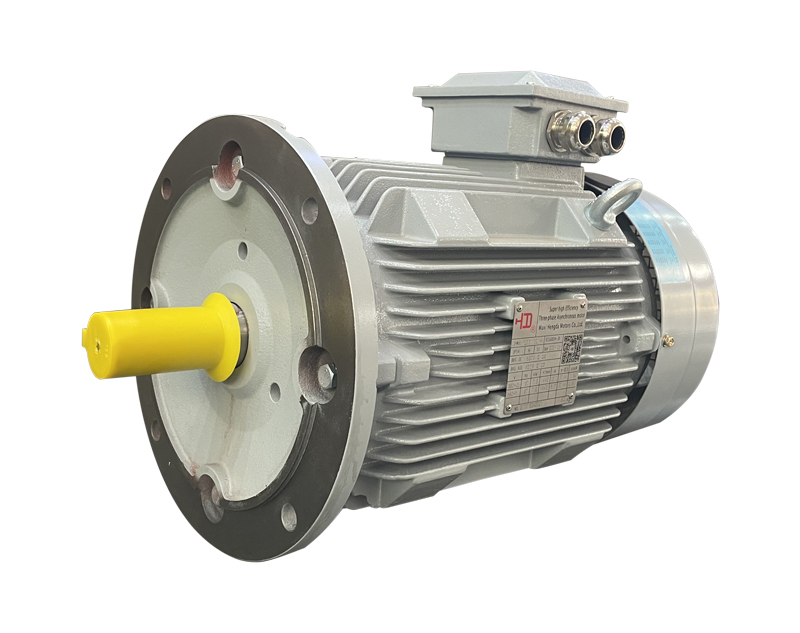

耐高溫三相異步電動機

耐高溫電動機是我公司在印染機械行業根據用戶要求成功研制的新型電機，具有新型的外觀，新增了前、后端蓋注、排油孔，同時在內蓋內增加甩油結構，防止加油時將油脂擠進電機內腔。并且用規范油管接至電機尾部，用戶能在不拆裝電機的前提下能正常給軸承加油。在使用環境≤55℃時，出軸與法蘭等部分溫度提高到250℃的惡劣環境下與循環風機直接相連能連續正常工作。軸承全部采用耐高溫的特種軸承，電機在運行1500小時左右，即應加注耐高溫潤滑脂，以保證軸承的使用壽命，并在電機材料上全部采用H級絕緣材料，延長電機使用壽命，保證了印染機械行業的連續生產。具有結構緊湊、性能可靠、方便耐用等特點。

運行條件

-15°C~+75°C

環境空氣溫度

≤90% (當溫度為25°c時)

環境空氣月平均最高相對濕度

≤1KM

海拔

規格型號	極數	額定功率	額定電流	額定轉速	額定轉矩	效率	功率因數	噪聲	防護等級	絕緣等級	工作制	接法	頻率	電壓
規格型號	極數	kW	A	r/min	N·m	η	cosΦ	dB	防護等級	絕緣等級	工作制	接法	Hz	V
YE3GW80M1-2	2	0.75	1.7	2880	2.4	80.7%	0.82	62	IP55	H	S1	Y	50	380
YE3GW80M2-2	2	1.1	2.4	2890	3.5	82.7%	0.83	62	IP55	H	S1	Y	50	380
YE3GW80M1-4	4	0.55	1.4	1430	3.5	80.8%	0.75	56	IP55	H	S1	Y	50	380
YE3GW80M2-4	4	0.75	1.8	1430	4.8	82.5%	0.75	56	IP55	H	S1	Y	50	380
YE3GW80M1-6	6	0.37	1.1	920	3.5	73.5%	0.70	54	IP55	H	S1	Y	50	380
YE3GW80M2-6	6	0.55	1.5	920	5.3	77.2%	0.72	54	IP55	H	S1	Y	50	380
YE3GW80M1-8	8	0.18	0.8	665	2.3	58.7%	0.61	52	IP55	H	S1	Y	50	380
YE3GW80M2-8	8	0.25	1.0	665	3.2	64.1%	0.61	52	IP55	H	S1	Y	50	380
YE3GW90S-2	2	1.5	3.2	2895	4.8	84.2%	0.84	67	IP55	H	S1	Y	50	380
YE3GW90L-2	2	2.2	4.6	2895	7.0	85.9%	0.85	67	IP55	H	S1	Y	50	380
YE3GW90S-4	4	1.1	2.6	1435	7.0	84.1%	0.76	59	IP55	H	S1	Y	50	380
YE3GW90L-4	4	1.5	3.5	1435	9.6	85.3%	0.77	59	IP55	H	S1	Y	50	380
YE3GW90S-6	6	0.75	2.0	950	7.2	78.9%	0.71	57	IP55	H	S1	Y	50	380
YE3GW90L-6	6	1.1	2.8	950	10.5	81.0%	0.73	57	IP55	H	S1	Y	50	380
YE3GW90S-8	8	0.37	1.3	685	4.7	69.3%	0.61	56	IP55	H	S1	Y	50	380
YE3GW90L-8	8	0.55	1.9	685	7.0	73.0%	0.61	56	IP55	H	S1	Y	50	380
YE3GW100L-2	2	3	6.0	2895	9.6	87.1%	0.87	74	IP55	H	S1	Y	50	380
YE3GW100L1-4	4	2.2	4.8	1450	14.0	86.7%	0.81	74	IP55	H	S1	Y	50	380
YE3GW100L2-4	4	3	6.3	1450	19.1	87.7%	0.82	65	IP55	H	S1	Y	50	380
YE3GW100L-6	6	1.5	3.8	955	14.3	82.5%	0.73	61	IP55	H	S1	Y	50	380
YE3GW100L1-8	8	0.75	2.3	705	9.6	75.0%	0.67	59	IP55	H	S1	Y	50	380
YE3GW100L2-8	8	1.1	3.1	705	14.0	77.7%	0.69	59	IP55	H	S1	Y	50	380
YE3GW112M-2	2	4	7.8	2905	12.7	88.1%	0.88	77	IP55	H	S1	?	50	380
YE3GW112M-4	4	4	8.4	1455	25.5	88.6%	0.82	65	IP55	H	S1	?	50	380
YE3GW112M-6	6	2.2	5.4	960	21.0	84.3%	0.74	65	IP55	H	S1	Y	50	380
YE3GW112M-8	8	1.5	4.1	705	19.1	79.7%	0.70	61	IP55	H	S1	Y	50	380
YE3GW132S1-2	2	5.5	10.6	2925	17.5	89.2%	0.88	79	IP55	H	S1	?	50	380
YE3GW132S2-2	2	7.5	14.4	2925	23.9	90.1%	0.88	79	IP55	H	S1	?	50	380
YE3GW132S-4	4	5.5	11.2	1460	35.0	89.6%	0.83	71	IP55	H	S1	?	50	380
YE3GW132M-4	4	7.5	15.0	1460	47.8	90.4%	0.84	71	IP55	H	S1	?	50	380
YE3GW132L-4	4	9	17.9	1460	57.3	90.8%	0.84	71	IP55	H	S1	?	50	380
YE3GW132L-4	4	9.2	18.3	1460	58.6	90.8%	0.84	71	IP55	H	S1	?	50	380
YE3GW132S-6	6	3	7.2	970	28.7	85.6%	0.74	69	IP55	H	S1	Y	50	380
YE3GW132M1-6	6	4	9.5	970	38.2	86.8%	0.74	69	IP55	H	S1	?	50	380
YE3GW132M2-6	6	5.5	12.7	970	52.5	88.0%	0.75	69	IP55	H	S1	?	50	380
YE3GW132S-8	8	2.2	5.7	710	28.0	81.9%	0.71	64	IP55	H	S1	Y	50	380
YE3GW132M-8	8	3	7.5	710	38.2	83.5%	0.73	64	IP55	H	S1	Y	50	380
YE3GW160M1-2	2	11	20.6	2945	35.0	91.2%	0.89	81	IP55	H	S1	?	50	380
YE3GW160M2-2	2	15	27.9	2945	47.8	91.9%	0.89	81	IP55	H	S1	?	50	380
YE3GW160L-2	2	18.5	34.2	2945	58.9	92.4%	0.89	81	IP55	H	S1	?	50	380
YE3GW160M-4	4	11	21.5	1470	70.0	91.4%	0.85	73	IP55	H	S1	?	50	380
YE3GW160L-4	4	15	28.8	1470	95.5	92.1%	0.86	73	IP55	H	S1	?	50	380
YE3GW160M-6	6	7.5	16.2	975	71.6	89.1%	0.79	73	IP55	H	S1	?	50	380
YE3GW160L-6	6	11	23.1	975	105.1	90.3%	0.80	73	IP55	H	S1	?	50	380
YE3GW160M1-8	8	4	9.8	720	50.9	84.8%	0.73	68	IP55	H	S1	?	50	380
YE3GW160M2-8	8	5.5	13.1	720	70.0	86.2%	0.74	68	IP55	H	S1	?	50	380
YE3GW160L-8	8	7.5	17.4	720	95.5	87.3%	0.75	68	IP55	H	S1	?	50	380
YE3GW180M-2	2	22	40.5	2960	70.0	92.7%	0.89	83	IP55	H	S1	?	50	380
YE3GW180M-4	4	18.5	35.3	1475	117.8	92.6%	0.86	76	IP55	H	S1	?	50	380
YE3GW180L-4	4	22	41.8	1475	140.1	93.0%	0.86	76	IP55	H	S1	?	50	380
YE3GW180L-6	6	15	30.9	980	143.3	91.2%	0.81	73	IP55	H	S1	?	50	380
YE3GW180L-8	8	11	25.2	725	140.1	88.6%	0.75	70	IP55	H	S1	?	50	380
YE3GW200L1-2	2	30	54.9	2960	95.5	93.3%	0.89	84	IP55	H	S1	?	50	380
YE3GW200L2-2	2	37	67.4	2960	117.8	93.7%	0.89	84	IP55	H	S1	?	50	380
YE3GW200L-4	4	30	56.6	1475	191.0	93.6%	0.86	76	IP55	H	S1	?	50	380
YE3GW200L1-6	6	18.5	37.8	980	176.7	91.7%	0.81	73	IP55	H	S1	?	50	380
YE3GW200L2-6	6	22	44.8	980	210.1	92.2%	0.81	73	IP55	H	S1	?	50	380
YE3GW200L-8	8	15	33.5	730	191.0	89.6%	0.76	70	IP55	H	S1	?	50	380
YE3GW225M-2	2	45	80.8	2975	143.3	94.0%	0.90	86	IP55	H	S1	?	50	380
YE3GW225S-4	4	37	69.6	1480	235.6	93.9%	0.86	78	IP55	H	S1	?	50	380
YE3GW225M-4	4	45	84.4	1480	286.5	94.2%	0.86	78	IP55	H	S1	?	50	380
YE3GW225M-6	6	30	59.1	985	286.5	92.9%	0.83	74	IP55	H	S1	?	50	380
YE3GW225S-8	8	18.5	41.0	730	235.6	90.1%	0.76	73	IP55	H	S1	?	50	380
YE3GW225M-8	8	22	47.3	735	280.1	90.6%	0.78	73	IP55	H	S1	?	50	380
YE3GW250M-2	2	55	98.5	2975	175.1	94.3%	0.90	89	IP55	H	S1	?	50	380
YE3GW250M-4	4	55	102.7	1485	350.2	94.6%	0.86	79	IP55	H	S1	?	50	380
YE3GW250M-6	6	37	71.7	985	353.4	93.3%	0.84	76	IP55	H	S1	?	50	380
YE3GW250M-8	8	30	63.2	735	382.0	91.3%	0.79	75	IP55	H	S1	?	50	380
YE3GW280S-2	2	75	133.7	2980	238.8	94.7%	0.90	91	IP55	H	S1	?	50	380
YE3GW280M-2	2	90	159.9	2980	286.5	95.0%	0.90	91	IP55	H	S1	?	50	380
YE3GW280S-4	4	75	136.3	1485	477.5	95.0%	0.88	80	IP55	H	S1	?	50	380
YE3GW280M-4	4	90	163.2	1485	573.0	95.2%	0.88	80	IP55	H	S1	?	50	380
YE3GW280S-6	6	45	85.8	990	429.8	93.7%	0.85	78	IP55	H	S1	?	50	380
YE3GW280M-6	6	55	103.3	990	525.3	94.1%	0.86	78	IP55	H	S1	?	50	380
YE3GW280S-8	8	37	77.5	735	471.1	91.8%	0.79	76	IP55	H	S1	?	50	380
YE3GW280M-8	8	45	93.9	735	573.0	92.2%	0.79	76	IP55	H	S1	?	50	380

規格型號	極數	額定功率	額定電流	額定轉速	額定轉矩	效率	功率因數	噪聲	防護等級	絕緣等級	工作制	接法	頻率	電壓
規格型號	極數	kW	A	r/min	N·m	η	cosΦ	dB	防護等級	絕緣等級	工作制	接法	Hz	V
YE4GW80M1-2	2	0.75	1.6	2890	2.4	83.5%	0.83	62	IP55	H	S1	Y	50	380
YE4GW80M2-2	2	1.1	2.4	2890	3.5	85.2%	0.83	62	IP55	H	S1	Y	50	380
YE4GW80M1-4	4	0.55	1.3	1440	3.5	83.9%	0.74	56	IP55	H	S1	Y	50	380
YE4GW80M2-4	4	0.75	1.8	1440	4.8	85.7%	0.74	56	IP55	H	S1	Y	50	380
YE4GW80M1-6	6	0.37	1.0	920	3.5	78.0%	0.70	54	IP55	H	S1	Y	50	380
YE4GW80M2-6	6	0.55	1.4	920	5.3	80.9%	0.72	54	IP55	H	S1	Y	50	380
YE4GW80M1-8	8	0.18	0.6	665	2.3	67.2%	0.65	52	IP55	H	S1	Y	50	380
YE4GW80M2-8	8	0.25	0.8	665	3.2	70.8%	0.65	52	IP55	H	S1	Y	50	380
YE4GW90S-2	2	1.5	3.1	2905	4.8	86.5%	0.85	67	IP55	H	S1	Y	50	380
YE4GW90L-2	2	2.2	4.4	2905	7.0	88.0%	0.86	67	IP55	H	S1	Y	50	380
YE4GW90S-4	4	1.1	2.6	1450	7.0	87.2%	0.75	59	IP55	H	S1	Y	50	380
YE4GW90L-4	4	1.5	3.4	1450	9.6	88.2%	0.76	59	IP55	H	S1	Y	50	380
YE4GW90S-6	6	0.75	2.0	960	7.2	82.7%	0.70	57	IP55	H	S1	Y	50	380
YE4GW90L-6	6	1.1	2.8	960	10.5	84.5%	0.70	57	IP55	H	S1	Y	50	380
YE4GW90S-8	8	0.37	1.2	685	4.7	74.3%	0.65	56	IP55	H	S1	Y	50	380
YE4GW90L-8	8	0.55	1.7	685	7.0	77.0%	0.65	56	IP55	H	S1	Y	50	380
YE4GW100L-2	2	3	5.9	2905	9.6	89.1%	0.87	74	IP55	H	S1	Y	50	380
YE4GW100L1-4	4	2.2	4.7	1450	14.0	89.5%	0.79	74	IP55	H	S1	Y	50	380
YE4GW100L2-4	4	3	6.3	1450	19.1	90.4%	0.80	65	IP55	H	S1	Y	50	380
YE4GW100L-6	6	1.5	3.7	960	14.3	85.9%	0.71	61	IP55	H	S1	Y	50	380
YE4GW100L1-8	8	0.75	2.2	705	9.6	78.4%	0.66	59	IP55	H	S1	Y	50	380
YE4GW100L2-8	8	1.1	3.1	705	14.0	80.8%	0.67	59	IP55	H	S1	Y	50	380
YE4GW112M-2	2	4	7.7	2915	12.7	90.0%	0.88	77	IP55	H	S1	?	50	380
YE4GW112M-4	4	4	8.3	1460	25.5	91.1%	0.80	65	IP55	H	S1	?	50	380
YE4GW112M-6	6	2.2	5.4	965	21.0	87.4%	0.71	65	IP55	H	S1	Y	50	380
YE4GW112M-8	8	1.5	4.0	715	19.1	82.6%	0.69	61	IP55	H	S1	Y	50	380
YE4GW132S1-2	2	5.5	10.4	2930	17.5	90.9%	0.88	79	IP55	H	S1	?	50	380
YE4GW132S2-2	2	7.5	14.0	2930	23.9	91.7%	0.89	79	IP55	H	S1	?	50	380
YE4GW132S-4	4	5.5	11.4	1470	35.0	91.9%	0.80	71	IP55	H	S1	?	50	380
YE4GW132M-4	4	7.5	15.2	1470	47.8	92.6%	0.81	71	IP55	H	S1	?	50	380
YE4GW132S-6	6	3	7.2	975	28.7	88.6%	0.71	69	IP55	H	S1	Y	50	380
YE4GW132M1-6	6	4	9.4	975	38.2	89.5%	0.72	69	IP55	H	S1	?	50	380
YE4GW132M2-6	6	5.5	12.8	975	52.5	90.5%	0.72	69	IP55	H	S1	?	50	380
YE4GW132S-8	8	2.2	5.7	730	28.0	84.5%	0.70	64	IP55	H	S1	Y	50	380
YE4GW132M-8	8	3	7.6	730	38.2	85.9%	0.70	64	IP55	H	S1	Y	50	380
YE4GW160M1-2	2	11	20.3	2950	35.0	92.6%	0.89	81	IP55	H	S1	?	50	380
YE4GW160M2-2	2	15	27.4	2950	47.8	93.3%	0.89	81	IP55	H	S1	?	50	380
YE4GW160L-2	2	18.5	33.7	2950	58.9	93.7%	0.89	81	IP55	H	S1	?	50	380
YE4GW160M-4	4	11	21.6	1475	70.0	93.3%	0.83	73	IP55	H	S1	?	50	380
YE4GW160L-4	4	15	28.9	1475	95.5	93.9%	0.84	73	IP55	H	S1	?	50	380
YE4GW160M-6	6	7.5	16.4	975	71.6	91.3%	0.76	73	IP55	H	S1	?	50	380
YE4GW160L-6	6	11	23.5	975	105.1	92.3%	0.77	73	IP55	H	S1	?	50	380
YE4GW160M1-8	8	4	9.8	725	50.9	87.1%	0.71	68	IP55	H	S1	?	50	380
YE4GW160M2-8	8	5.5	13.1	725	70.0	88.3%	0.72	68	IP55	H	S1	?	50	380
YE4GW160L-8	8	7.5	17.2	725	95.5	89.3%	0.74	68	IP55	H	S1	?	50	380
YE4GW180M-2	2	22	40.0	2960	70.0	94.0%	0.89	83	IP55	H	S1	?	50	380
YE4GW180M-4	4	18.5	35.1	1475	117.8	94.2%	0.85	76	IP55	H	S1	?	50	380
YE4GW180L-4	4	22	41.6	1475	140.1	94.5%	0.85	76	IP55	H	S1	?	50	380
YE4GW180L-6	6	15	30.7	985	143.3	92.9%	0.80	73	IP55	H	S1	?	50	380
YE4GW180L-8	8	11	25.0	730	140.1	90.4%	0.74	70	IP55	H	S1	?	50	380
YE4GW200L1-2	2	30	54.2	2960	95.5	94.5%	0.89	84	IP55	H	S1	?	50	380
YE4GW200L2-2	2	37	66.6	2960	117.8	94.8%	0.89	84	IP55	H	S1	?	50	380
YE4GW200L-4	4	30	56.5	1480	191.0	94.9%	0.85	76	IP55	H	S1	?	50	380
YE4GW200L1-6	6	18.5	37.6	985	176.7	93.4%	0.80	73	IP55	H	S1	?	50	380
YE4GW200L2-6	6	22	44.0	985	210.1	93.7%	0.81	73	IP55	H	S1	?	50	380
YE4GW200L-8	8	15	33.3	735	191.0	91.2%	0.75	70	IP55	H	S1	?	50	380
YE4GW225M-2	2	45	80.9	2975	143.3	95.0%	0.89	86	IP55	H	S1	?	50	380
YE4GW225S-4	4	37	69.5	1485	235.6	95.2%	0.85	78	IP55	H	S1	?	50	380
YE4GW225M-4	4	45	84.3	1485	286.5	95.4%	0.85	78	IP55	H	S1	?	50	380
YE4GW225M-6	6	30	59.0	985	286.5	94.2%	0.82	74	IP55	H	S1	?	50	380
YE4GW225S-8	8	18.5	40.9	735	235.6	91.7%	0.75	73	IP55	H	S1	?	50	380
YE4GW225M-8	8	22	47.8	735	280.1	92.1%	0.76	73	IP55	H	S1	?	50	380
YE4GW250M-2	2	55	98.5	2975	175.1	95.3%	0.89	89	IP55	H	S1	?	50	380
YE4GW250M-4	4	55	101.5	1485	350.2	95.7%	0.86	79	IP55	H	S1	?	50	380
YE4GW250M-6	6	37	71.7	990	353.4	94.5%	0.83	76	IP55	H	S1	?	50	380
YE4GW250M-8	8	30	63.9	735	382.0	92.7%	0.77	75	IP55	H	S1	?	50	380
YE4GW280S-2	2	75	133.9	2980	238.8	95.6%	0.89	91	IP55	H	S1	?	50	380
YE4GW280M-2	2	90	160.4	2980	286.5	95.8%	0.89	91	IP55	H	S1	?	50	380
YE4GW280S-4	4	75	136.4	1490	477.5	96.0%	0.87	80	IP55	H	S1	?	50	380
YE4GW280M-4	4	90	161.7	1490	573.0	96.1%	0.88	80	IP55	H	S1	?	50	380
YE4GW280S-6	6	45	86.9	990	429.8	94.8%	0.83	78	IP55	H	S1	?	50	380
YE4GW280M-6	6	55	104.6	990	525.3	95.1%	0.84	78	IP55	H	S1	?	50	380
YE4GW280S-8	8	37	77.4	740	471.1	93.1%	0.78	76	IP55	H	S1	?	50	380
YE4GW280M-8	8	45	93.9	740	573.0	93.4%	0.78	76	IP55	H	S1	?	50	380
