機座范圍 | H80~355 | 功率范圍 | 0.55~315kW |
| 額定電壓 | 380V、440V | 額定頻率 | 50Hz 、60Hz |
| 防護等級 | IP55 | 極數 | 2、4、6、8極 |
| 絕緣等級 | F | 工作方式 | S1 |
| 安裝方式 | B3、B5、B35、V1 | 接線方式 | Y/? |

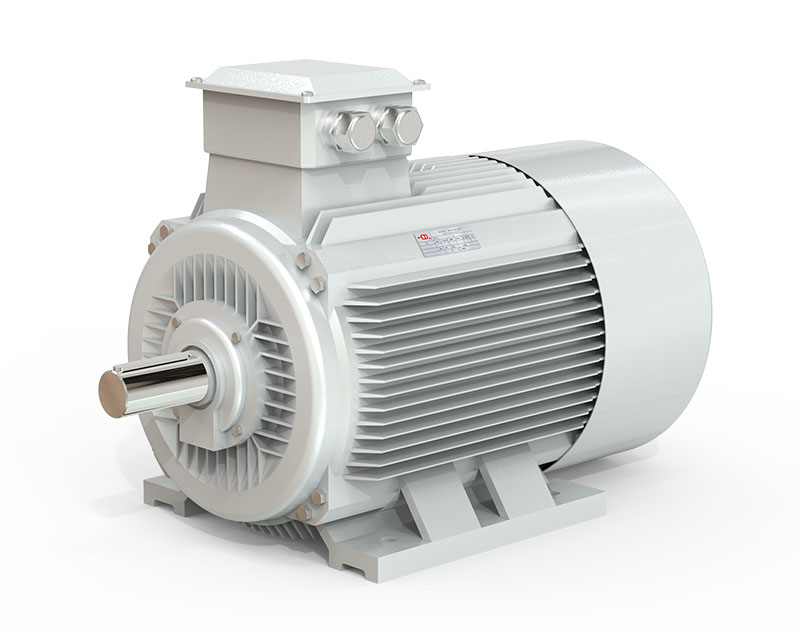

Y-H系列為自扇冷式船用三相籠型異步電動機，適用于 船舶上驅動泵類、通風機械、分離器、液壓機械及其他輔 助設備。 Y-H系列符合國家標準 GB/T 7060-2019 船用旋轉電機 基本要求以及JB/T5273-2014 Y-H系列（IP44）船用三相 異步電動機技術要求（機座號80~355） 。 電動機也符合以下標準和規范的有關要求。
| 型號 | 功率 | 電流 A | 轉速 r/min | 堵轉轉矩/額定轉矩 | 最大轉矩/ 額定轉矩 | 堵轉視在功率 /額定功率 | 效率 η | 功率因數 | ||||||||
| (kW) | (HP) | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | |
| 380V | 440V | 380V | 440V | 380V | 440V | 380V | 440V | 380V | 440V | 380V | 440V | 380V | 440V | |||
| Y80M1-2-H | 0.75 | 1 | 1.9 | 1.55 | 2820 | 3460 | 1.9 | 2.1 | 13 | 75.0 | 76.5 | 0.84 | 0.82 | |||
| Y80M2-2-H | 1.1 | 1.5 | 2.6 | 2.15 | 2820 | 3460 | 76.5 | 77.5 | 0.85 | 0.85 | ||||||
| Y90S-2-H | 1.5 | 2 | 3.4 | 2.95 | 2840 | 3470 | 79.5 | 80.0 | 0.82 | 0.8 | ||||||
| Y90L-2-H | 2.2 | 3 | 4.7 | 4.07 | 2840 | 3470 | 82.5 | 83.5 | 0.83 | 0.81 | ||||||
| Y100L-2-H | 3 | 4 | 6.4 | 5.45 | 2880 | 3490 | 84.0 | 84.0 | 0.87 | 0.86 | ||||||
| Y112M-2-H | 4 | 5.5 | 8.2 | 7.1 | 2890 | 3500 | 86.5 | 87.0 | 0.86 | 0.84 | ||||||
| Y132S1-2-H | 5.5 | 7.5 | 11.1 | 9.6 | 2900 | 3520 | 1.5 | 2 | 86.5 | 86.0 | 0.88 | 0.87 | ||||
| Y132S2-2-H | 7.5 | 10 | 15 | 12.7 | 2900 | 3520 | 12 | 87.5 | 87.0 | 0.89 | 0.88 | |||||
| Y160M1-2-H | 11 | 15 | 21.8 | 19.1 | 2930 | 3540 | 1.8 | 89.0 | 88.5 | 0.87 | 0.87 | |||||
| Y160M2-2-H | 15 | 20 | 29.4 | 25.1 | 2930 | 3540 | 89.0 | 90.0 | 0.88 | 0.88 | ||||||
| Y160L-2-H | 18.5 | 25 | 35.5 | 30.3 | 2930 | 3540 | 89.5 | 90.0 | 0.88 | 0.89 | ||||||
| Y180M-2-H | 22 | 30 | 42.2 | 36.9 | 2940 | 3550 | 89.5 | 89.0 | 0.88 | 0.88 | ||||||
| Y200L1-2-H | 30 | 40 | 56.9 | 49.7 | 2955 | 3560 | 1.7 | 1.9 | 11 | 89.5 | 89.0 | 0.88 | 0.88 | |||
| Y200L2-2-H | 37 | 50 | 60.6 | 60.6 | 2960 | 3560 | 92.0 | 91.5 | 0.88 | 0.88 | ||||||
| Y225M-2-H | 45 | 60 | 84 | 72.5 | 2960 | 3572 | 90.5 | 90.0 | 0.88 | 0.86 | ||||||
| Y250M-2-H | 55 | 75 | 102.7 | 90 | 2970 | 3570 | 92.0 | 90.5 | 0.88 | 0.87 | ||||||
| Y280S-2-H | 75 | 100 | 140.1 | 123 | 2970 | 3580 | 92.0 | 91.5 | 0.89 | 0.89 | ||||||
| Y280M-2-H | 90 | 125 | 167 | 146 | 2970 | 3580 | 93.0 | 92.5 | 0.88 | 0.89 | ||||||
| Y315S-2-H | 110 | 150 | 203 | 180 | 2970 | 3580 | 1.4 | 1.8 | 10 | 92.5 | 91.0 | 0.89 | 0.88 | |||
| Y315M-2-H | 132 | 175 | 242 | 215 | 2970 | 3580 | 93.0 | 91.5 | ||||||||
| Y315L1-2-H | 160 | 220 | 292 | 259 | 2970 | 3580 | 93.5 | 92.0 | ||||||||
| Y315L2-2-H | 200 | 270 | 365 | 324 | 2970 | 3580 | ||||||||||
| Y355M-2-H | 250 | 350 | 451 | 401 | 2970 | 3580 | 1.1 | 1.9 | 93.5 | 92.0 | 0.9 | 0.89 | ||||
| Y355L-2-H | 315 | 422 | 566 | 502 | 2970 | 3580 | 94.0 | 92.5 | ||||||||
| Y80M1-4-H | 0.55 | 0.75 | 1.6 | 1.33 | 1390 | 1710 | 2 | 2.1 | 13 | 72.5 | 74.0 | 0.75 | 0.71 | |||
| Y80M2-4-H | 0.75 | 1 | 2.1 | 1.75 | 1390 | 1710 | 1.9 | 74.0 | 76.0 | 0.75 | 0.72 | |||||
| Y90S-4-H | 1.1 | 1.5 | 2.7 | 2.45 | 1400 | 1710 | 78.0 | 79.0 | 0.78 | 0.75 | ||||||
| Y90L-4-H | 1.5 | 2 | 3.7 | 3.2 | 1400 | 1710 | 79.0 | 80.5 | 0.8 | 0.77 | ||||||
| Y100L1-4-H | 2.2 | 3 | 5 | 4.4 | 1420 | 1730 | 81.5 | 82.5 | 0.81 | 0.78 | ||||||
| Y100L2-4-H | 3 | 4 | 6.8 | 5.9 | 1420 | 1730 | 83.0 | 85.0 | 0.81 | 0.78 | ||||||
| Y112M-4-H | 4 | 5.5 | 8.8 | 7.7 | 1440 | 1750 | 84.5 | 86.0 | 0.81 | 0.79 | ||||||
| Y132S-4-H | 5.5 | 7.5 | 11.6 | 9.9 | 1440 | 1750 | 1.8 | 2 | 86.0 | 88.0 | 0.83 | 0.82 | ||||
| Y132M-4-H | 7.5 | 10 | 15.4 | 13.2 | 1440 | 1750 | 12 | 87.0 | 88.5 | 0.85 | 0.84 | |||||
| Y160M-4-H | 11 | 15 | 22.6 | 19.5 | 1460 | 1760 | 88.5 | 89.0 | 0.83 | 0.83 | ||||||
| Y160L-4-H | 15 | 20 | 30.3 | 26 | 1460 | 1760 | 89.0 | 91.0 | 0.84 | 0.83 | ||||||
| Y180M-4-H | 18.5 | 25 | 35.9 | 31 | 1470 | 1770 | 91.0 | 91.5 | 0.86 | 0.86 | ||||||
| Y180L 4-H | 22 | 30 | 42.5 | 36.7 | 1470 | 1770 | 11 | 91.0 | 90.0 | 0.87 | 0.86 | |||||
| Y200L 4-H | 30 | 40 | 56.9 | 49.8 | 1476 | 1779 | 1.7 | 1.9 | 91.5 | 92.0 | 0.87 | 0.86 | ||||
| Y225S-4-H | 37 | 50 | 70.4 | 60.7 | 1481 | 1783 | 92.0 | 92.5 | 0.87 | 0.87 | ||||||
| Y225M-4-H | 45 | 60 | 84.2 | 72.5 | 1480 | 1783 | 92.5 | 92.5 | 0.88 | 0.87 | ||||||
| Y250M-4-H | 55 | 75 | 103 | 89 | 1480 | 1780 | 92.5 | 92.5 | 0.88 | 0.88 | ||||||
| Y280S-4-H | 75 | 100 | 140 | 119 | 1480 | 1790 | 93.0 | 92.5 | 0.88 | 0.88 | ||||||
| Y280M-4-H | 90 | 125 | 164 | 142 | 1480 | 1790 | 1.6 | 93.5 | 93.5 | 0.89 | 0.89 | |||||
| Y315S-4-H | 110 | 150 | 201 | 177 | 1480 | 1790 | 1.4 | 1.8 | 10 | 93.5 | 92.5 | 0.89 | 0.88 | |||
| Y315M-4-H | 132 | 175 | 240 | 212 | 1480 | 1790 | 94.0 | 93.0 | ||||||||
| Y315L1-4-H | 160 | 220 | 289 | 255 | 1480 | 1790 | 94.5 | 93.5 | ||||||||
| Y315L2-4-H | 200 | 270 | 361 | 319 | 1480 | 1790 | ||||||||||
| Y355M-4-H | 250 | 350 | 464 | 410 | 1480 | 1790 | 1.1 | 1.9 | 94.5 | 93.5 | 0.87 | 0.86 | ||||
| Y355L-4-H | 315 | 422 | 582 | 514 | 1480 | 1790 | 94.0 | 93.0 | ||||||||
| 94.5 | 93.5 | |||||||||||||||
| Y90S-6-H | 0.75 | 1 | 2.3 | 1.91 | 910 | 1130 | 1.8 | 2 | 13 | 72.5 | 74.0 | 0.7 | 0.67 | |||
| Y90L-6-H | 1.1 | 1.5 | 3.2 | 2.81 | 910 | 1130 | 72.5 | 74.0 | 0.71 | 0.68 | ||||||
| Y100L-6-H | 1.5 | 2 | 4 | 3.47 | 940 | 1150 | 77.5 | 79.5 | 0.73 | 0.7 | ||||||
| Y112M-6-H | 2.2 | 3 | 5.6 | 4.89 | 940 | 1150 | 79.5 | 82.0 | 0.72 | 0.68 | ||||||
| Y132S-6-H | 3 | 4 | 7.2 | 6.37 | 960 | 1170 | 83.5 | 83.5 | 0.76 | 0.74 | ||||||
| Y132M1-6-H | 4 | 5.5 | 9.4 | 8.23 | 960 | 1170 | 84.0 | 86.0 | 0.76 | 0.74 | ||||||
| Y132M2-6-H | 5.5 | 7.5 | 12.6 | 10.8 | 960 | 1170 | 86.0 | 87.5 | 0.78 | 0.77 | ||||||
| Y160M-6-H | 7.5 | 10 | 17 | 14.8 | 970 | 1170 | 1.7 | 1.9 | 12 | 87.5 | 88.5 | 0.76 | 0.75 | |||
| Y160L-6-H | 11 | 15 | 24.6 | 21.2 | 970 | 1170 | 88.0 | 88.5 | 0.76 | 0.75 | ||||||
| Y180L-6-H | 15 | 20 | 31.4 | 27.5 | 970 | 1180 | 88.5 | 88.5 | 0.78 | 0.76 | ||||||
| Y200L1-6-H | 18.5 | 25 | 38.1 | 33.1 | 980 | 1183 | 90.0 | 90.5 | 0.83 | 0.82 | ||||||
| Y200L2-6-H | 22 | 30 | 44.7 | 38.7 | 980 | 1182 | 90.0 | 90.5 | 0.83 | 0.82 | ||||||
| Y225M-6-H | 30 | 40 | 58 | 50 | 985 | 1187 | 1.5 | 1.8 | 11 | 91.0 | 91.5 | 0.82 | 0.81 | |||
| Y250M-6-H | 37 | 50 | 72 | 60.99 | 980 | 1180 | 91.0 | 91.0 | 0.87 | 0.87 | ||||||
| Y280S-6-H | 45 | 60 | 85.4 | 73.77 | 980 | 1190 | 92.0 | 92.0 | 0.86 | 0.85 | ||||||
| Y280M-6-H | 55 | 75 | 104.9 | 88.66 | 980 | 1190 | 92.0 | 92.5 | 0.88 | 0.87 | ||||||
| Y315S-6-H | 75 | 100 | 141.14 | 123.98 | 980 | 1190 | 1.2 | 1.7 | 11 | 92.8 | 92.3 | 0.87 | 0.86 | |||
| Y315M-6-H | 90 | 125 | 168.64 | 148.13 | 980 | 1190 | 93.2 | 92.7 | ||||||||
| Y315L1-6-H | 110 | 150 | 205.46 | 180.47 | 980 | 1190 | 10 | 93.5 | 93.0 | |||||||
| Y315L2-6-H | 132 | 175 | 245.76 | 215.86 | 980 | 1190 | 93.8 | 93.3 | ||||||||
| Y355M1-6 | 160 | 220 | 302 | 265.3 | 980 | 1190 | 1.1 | 1.8 | 93.6 | 93.1 | 0.86 | 0.85 | ||||
| Y355M2-6-H | 200 | 270 | 376.69 | 330.91 | 980 | 1190 | 93.6 | 93.3 | ||||||||
| Y355L-6-H | 250 | 350 | 468.86 | 411.88 | 980 | 1190 | 94.2 | 93.7 | ||||||||
| Y132S-8-H | 2.2 | 3 | 5.8 | 5.24 | 710 | 860 | 1.7 | 1.9 | 13 | 80.0 | 81.0 | 0.72 | 0.68 | |||
| Y132M-8-H | 3 | 4 | 7.7 | 6.82 | 710 | 860 | 82.5 | 83.5 | 0.73 | 0.69 | ||||||
| Y160M1-8-H | 4 | 5.5 | 9.9 | 8.87 | 720 | 870 | 84.0 | 86.0 | 0.69 | 0.67 | ||||||
| Y160M2-8-H | 5.5 | 7.5 | 13.3 | 11.7 | 720 | 870 | 85.5 | 87.0 | 0.73 | 0.72 | ||||||
| Y160L-8-H | 7.5 | 10 | 17.7 | 15.4 | 720 | 870 | 12 | 86.0 | 87.0 | 0.75 | 0.73 | |||||
| Y180L-8-H | 11 | 15 | 25.1 | 21.9 | 730 | 880 | 1.5 | 1.8 | 87.0 | 88.0 | 0.75 | 0.74 | ||||
| Y200L-8-H | 15 | 20 | 34.1 | 30 | 729 | 882 | 89.0 | 90.0 | 0.77 | 0.75 | ||||||
| Y225S-8-H | 18.5 | 25 | 41.3 | 36 | 735 | 886 | 90.5 | 91.0 | 0.77 | 0.75 | ||||||
| Y225M-8-H | 22 | 30 | 47.6 | 42 | 734 | 886 | 90.5 | 91.0 | 0.78 | 0.76 | ||||||
| Y250M-8-H | 30 | 40 | 63 | 55.06 | 730 | 890 | 11 | 91.5 | 92.0 | 0.77 | 0.75 | |||||
| Y280S-8-H | 37 | 50 | 78.2 | 67.17 | 740 | 890 | 91.5 | 91.5 | 0.77 | 0.77 | ||||||
| Y280M-8-H | 45 | 60 | 93.2 | 80.23 | 740 | 890 | 92.5 | 92.5 | 0.78 | 0.79 | ||||||
| Y315S-8-H | 55 | 75 | 113.54 | 98.59 | 740 | 890 | 1.2 | 1.7 | 11 | 92.0 | 91.5 | 0.8 | 0.8 | |||
| Y315M-8-H | 75 | 100 | 152.09 | 132.06 | 740 | 890 | 92.5 | 92.0 | 0.81 | 0.81 | ||||||
| Y315L1-8-H | 90 | 125 | 179.31 | 155.69 | 740 | 890 | 93.0 | 92.5 | 0.82 | 0.82 | ||||||
| Y315L2-8-H | 110 | 150 | 218.45 | 189.68 | 740 | 890 | 10 | 93.3 | 92.8 | |||||||
| Y355M1-8-H | 132 | 175 | 264.8 | 229.93 | 740 | 890 | 1.1 | 1.8 | 93.5 | 93.0 | 0.81 | 0.81 | ||||
| Y355M2-8-H | 160 | 220 | 320.3 | 278.1 | 740 | 890 | 93.7 | 93.2 | ||||||||
| Y355L-8-H | 200 | 270 | 399.09 | 346.51 | 740 | 890 | 94.0 | 93.5 | ||||||||
