Technical characteristics

Frame Range	H80~450	Power Range	0.18~1000kW
Rated voltage	380V（Special voltage customization）	Rated Frequency	50Hz（特殊頻率定制）
Efficiency Level	IE3	Poles	2、4、6、8極
Protection Degree	IP55	Cooling Mode	IC411、IC416
Insulation Class	F	Operation Mode	S1
Installation Mode	B3、B5、B35、B14、B34、V1	Wiring Mode	Y/?

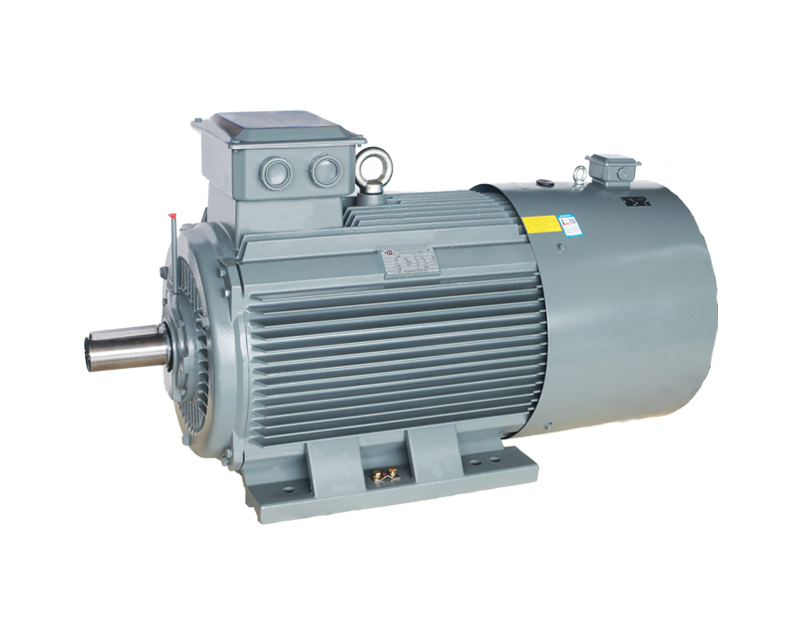

YE3VP series variable frequency adjustable speed three-phase asynchronous motor

YE3VP series motor is a high-efficiency variable frequency speed regulation motor developed according to national policies and responding to market demand. It has the advantages of high efficiency, low noise, small vibration, wide speed regulation range, reliable operation and so on. YE3VP series motor adopts superior electromagnetic design scheme, excellent raw materials, reliable and sophisticated manufacturing technology and detection measures, so that the motor can output constant torque at low speed and maintain a certain overload capacity in high frequency band, and has strong adaptability to the overvoltage caused by high frequency carrier of frequency converter. At the same time, this series of motor adopts independent fan cooling to ensure that the temperature rise of the motor does not exceed the allowable value during low-speed and long-term operation. YE3VP series motor can easily install braking device, encoder and tachometer to realize rapid braking and automatic control. This series of motors are widely used in textile, fan and water pump to regulate flow and speed regulation of constant torque (below fundamental frequency) and constant power (above fundamental frequency) in machine tool, chemical metallurgy, steel and other industries, and can meet the needs of special fields such as papermaking, cable, plastic, packaging, elevator, hoisting and so on.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Poles	Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor	Protection Degree	Insulation Class	Duty	Connection	Frequency	Constant Torque	Constant Power	Rated Voltage
Model	Poles	kW	A	r/min	N·m	η	cosΦ	Protection Degree	Insulation Class	Duty	Connection	Hz	Hz	Hz	V
YE3VP80M1-2	2	0.75	1.7	2845	2.4	80.7	0.82	IP55	F	S1	Y	50	5~50	50~60	380
YE3VP80M2-2	2	1.1	2.4	2840	3.5	82.7	0.83	IP55	F	S1	Y	50	5~50	50~60	380
YE3VP90S-2	2	1.5	3.2	2840	4.8	84.2	0.84	IP55	F	S1	Y	50	5~50	50~60	380
YE3VP90L-2	2	2.2	4.6	2840	7.0	85.9	0.85	IP55	F	S1	Y	50	5~50	50~60	380
YE3VP100L-2	2	3	6.0	2860	9.6	87.1	0.87	IP55	F	S1	Y	50	5~50	50~60	380
YE3VP112M-2	2	4	7.8	2890	12.7	88.1	0.88	IP55	F	S1	?	50	5~50	50~60	380
YE3VP112L-2	2	5.5	10.6	2890	17.5	89.2	0.88	IP55	F	S1	?	50	5~50	50~60	380
YE3VP132S1-2	2	5.5	10.6	2910	17.5	89.2	0.88	IP55	F	S1	?	50	5~50	50~60	380
YE3VP132S2-2	2	7.5	14.4	2905	23.9	90.1	0.88	IP55	F	S1	?	50	5~50	50~60	380
YE3VP132S3-2	2	9	17.2	2905	28.7	90.6	0.88	IP55	F	S1	?	50	5~50	50~60	380
YE3VP132M-2	2	11	20.6	2905	35.0	91.2	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP132L-2	2	15	27.9	2905	47.8	91.9	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP160M1-2	2	11	20.6	2935	35.0	91.2	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP160M2-2	2	15	27.9	2935	47.8	91.9	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP160L-2	2	18.5	34.2	2935	58.9	92.4	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP160L2-2	2	22	40.5	2935	70.0	92.7	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP180M0-2	2	18.5	34.2	2940	58.9	92.4	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP180M-2	2	22	40.5	2940	70.0	92.7	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP180L1-2	2	25	45.9	2940	79.6	93.0	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP180L2-2	2	30	54.9	2940	95.5	93.3	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP180LX-2	2	37	67.4	2940	117.8	93.7	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP200L1-2	2	30	54.9	2945	95.5	93.3	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP200L2-2	2	37	67.4	2945	117.8	93.7	0.89	IP55	F	S1	?	50	5~50	50~60	380
YE3VP200LX-2	2	45	80.8	2945	143.3	94.0	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP225M-2	2	45	80.8	2950	143.3	94.0	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP225M2-2	2	55	98.5	2950	175.1	94.3	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP250M-2	2	55	98.5	2965	175.1	94.3	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP250M2-2	2	75	133.7	2965	238.8	94.7	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP280S-2	2	75	133.7	2965	238.8	94.7	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP280M-2	2	90	159.9	2965	286.5	95.0	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP280L-2	2	110	195.1	2965	350.2	95.2	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP280M2-2	2	110	195.1	2965	350.2	95.2	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP280MX-2	2	132	233.6	2965	420.2	95.4	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP315S-2	2	110	195.1	2975	350.2	95.2	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP315M-2	2	132	233.6	2975	420.2	95.4	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP315L1-2	2	160	279.4	2975	509.3	95.6	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP315L12-2	2	185	322.8	2975	588.9	95.7	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP315L2-2	2	200	348.6	2975	636.7	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP315LX1-2	2	220	383.4	2975	700.3	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP315LX2-2	2	250	435.7	2975	795.8	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP355M0-2	2	220	383.4	2970	700.3	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP355M-2	2	250	435.7	2970	795.8	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP355L0-2	2	280	488.0	2970	891.3	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP355L-2	2	315	549.0	2970	1002.8	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP355X1-2	2	355	625.6	2970	1130.1	95.8	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP355X2-2	2	375	660.8	2970	1193.8	95.8	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP400M1-2	2	355	625.6	2985	1130.1	95.8	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP400M2-2	2	400	704.9	2985	1273.3	95.8	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP400M3-2	2	450	793.0	2985	1432.5	95.8	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP400L1-2	2	500	881.1	2985	1591.7	95.8	0.90	IP55	F	S1	?	50	5~50	50~60	380
YE3VP400L2-2	2	560	976.0	2985	1782.7	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP400L3-2	2	630	1098.0	2985	2005.5	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP450X1-2	2	710	1237.4	2990	2260.2	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP450X2-2	2	800	1394.3	2990	2546.7	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP450X3-2	2	900	1568.6	2990	2865.0	95.8	0.91	IP55	F	S1	?	50	5~50	50~60	380
YE3VP450X4-2	2	1000	1723.9	2990	3183.3	95.8	0.92	IP55	F	S1	?	50	5~50	50~60	380
YE3VP80M1-4	4	0.55	1.4	1380	3.5	80.8	0.75	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M2-4	4	0.75	1.8	1380	4.8	82.5	0.75	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90S-4	4	1.1	2.6	1390	7.0	84.1	0.76	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90L-4	4	1.5	3.5	1390	9.6	85.3	0.77	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L1-4	4	2.2	4.8	1410	14.0	86.7	0.81	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L2-4	4	3	6.3	1410	19.1	87.7	0.82	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP112M-4	4	4	8.4	1440	25.5	88.6	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE3VP112L-4	4	5.5	11.2	1440	35.0	89.6	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE3VP132S-4	4	5.5	11.2	1445	35.0	89.6	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE3VP132M-4	4	7.5	15.0	1445	47.8	90.4	0.84	IP55	F	S1	?	50	5~50	50~100	380
YE3VP132M2-4	4	9	17.9	1445	57.3	90.9	0.84	IP55	F	S1	?	50	5~50	50~100	380
YE3VP132L1-4	4	11	21.5	1445	70.0	91.4	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE3VP132L2-4	4	15	28.8	1445	95.5	92.1	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160M-4	4	11	21.5	1470	70.0	91.4	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160M1-4	4	13	25.3	1470	82.8	91.8	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160L-4	4	15	28.8	1470	95.5	92.1	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160L2-4	4	18.5	35.3	1470	117.8	92.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180M0-4	4	17	32.5	1470	108.2	92.4	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180M-4	4	18.5	35.3	1470	117.8	92.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180L0-4	4	20.5	39.0	1470	130.5	92.8	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180L-4	4	22	41.8	1470	140.1	93.0	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180L2-4	4	30	56.6	1470	191.0	93.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180LX-4	4	37	69.6	1470	235.6	93.9	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP200L-4	4	30	56.6	1470	191.0	93.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP200L2-4	4	37	69.6	1470	235.6	93.9	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP225S-4	4	37	69.6	1475	235.6	93.9	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP225M-4	4	45	84.4	1475	286.5	94.2	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP225M2-4	4	55	102.7	1475	350.2	94.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP250M-4	4	55	102.7	1475	350.2	94.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP250M2-4	4	75	136.3	1475	477.5	95.0	0.88	IP55	F	S1	?	50	5~50	50~100	380
YE3VP250XM-4	4	75	136.3	1475	477.5	95.0	0.88	IP55	F	S1	?	50	5~50	50~100	380
YE3VP250MX-4	4	90	163.2	1475	573.0	95.2	0.88	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280S-4	4	75	136.3	1485	477.5	95.0	0.88	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280M-4	4	90	163.2	1485	573.0	95.2	0.88	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280M1-4	4	110	196.8	1485	700.3	95.4	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280MX-4	4	132	235.7	1485	840.4	95.6	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315S-4	4	110	196.8	1485	700.3	95.4	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315M-4	4	132	235.7	1485	840.4	95.6	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L1-4	4	160	285.1	1485	1018.7	95.8	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L12-4	4	185	329.3	1485	1177.8	95.9	0.89	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L2-4	4	200	351.7	1485	1273.3	96.0	0.90	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315LX1-4	4	220	386.9	1485	1400.7	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP315LX2-4	4	250	439.6	1485	1591.7	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355M01-4	4	220	386.9	1490	1400.7	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355M-4	4	250	439.6	1490	1591.7	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355M2-4	4	280	492.4	1490	1782.7	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355L-4	4	315	553.9	1490	2005.5	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355L2-4	4	355	638.5	1490	2260.2	96.0	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355X1-4	4	355	638.5	1490	2260.2	96.0	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355X2-4	4	375	674.4	1490	2387.5	96.0	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400M1-4	4	355	638.5	1490	2260.2	96.0	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400M2-4	4	400	719.4	1490	2546.7	96.0	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400M3-4	4	450	809.3	1490	2865.0	96.0	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L1-4	4	500	899.3	1490	3183.3	96.0	0.88	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L2-4	4	560	995.9	1490	3565.3	96.0	0.89	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L3-4	4	630	1120.3	1490	4011.0	96.0	0.89	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X1-4	4	710	1262.6	1490	4520.3	96.0	0.89	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X2-4	4	800	1406.8	1490	5093.3	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X3-4	4	900	1582.7	1490	5730.0	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X4-4	4	1000	1758.6	1490	6366.7	96.0	0.90	IP55	F	S1	?	50	5~50	50~75	380
YE3VP80M1-6	6	0.37	1.1	900	3.5	73.5	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M2-6	6	0.55	1.5	900	5.3	77.2	0.72	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90S-6	6	0.75	2.0	915	7.2	78.9	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90L-6	6	1.1	2.8	915	10.5	81.0	0.73	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L-6	6	1.5	3.8	920	14.3	82.5	0.73	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP112M-6	6	2.2	5.4	940	21.0	84.3	0.74	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP132S-6	6	3	7.2	960	28.7	85.6	0.74	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP132M1-6	6	4	9.5	960	38.2	86.8	0.74	IP55	F	S1	?	50	5~50	50~100	380
YE3VP132M2-6	6	5.5	12.7	960	52.5	88.0	0.75	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160M-6	6	7.5	16.2	970	71.6	89.1	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160L-6	6	11	23.1	970	105.1	90.3	0.80	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180L-6	6	15	30.9	970	143.3	91.2	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180L2-6	6	17	34.9	970	162.4	91.5	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE3VP180L3-6	6	20.5	41.8	970	195.8	92.0	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE3VP200L1-6	6	18.5	37.8	975	176.7	91.7	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE3VP200L2-6	6	22	44.8	975	210.1	92.2	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE3VP225M-6	6	30	59.1	980	286.5	92.9	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE3VP250M-6	6	37	71.7	980	353.4	93.3	0.84	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280S-6	6	45	85.8	980	429.8	93.7	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280M-6	6	55	103.3	980	525.3	94.1	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315S-6	6	75	143.4	985	716.3	94.6	0.84	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315M-6	6	90	169.5	985	859.5	94.9	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L1-6	6	110	206.8	985	1050.5	95.1	0.85	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L2-6	6	132	244.5	985	1260.6	95.4	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355M1-6	6	160	295.7	990	1528.0	95.6	0.86	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355M12-6	6	185	337.6	990	1766.8	95.7	0.87	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355M2-6	6	200	364.6	990	1910.0	95.8	0.87	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355M3-6	6	220	401.1	990	2101.0	95.8	0.87	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355L-6	6	250	455.7	990	2387.5	95.8	0.87	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355L2-6	6	280	510.4	990	2674.0	95.8	0.87	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355X1-6	6	315	609.3	990	3008.3	95.8	0.82	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400M1-6	6	315	609.3	990	3008.3	95.8	0.82	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400M2-6	6	355	686.6	990	3390.3	95.8	0.82	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L1-6	6	400	764.3	990	3820.0	95.8	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L2-6	6	450	859.9	990	4297.5	95.8	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L3-6	6	500	955.4	990	4775.0	95.8	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X0-6	6	560	1057.3	990	5348.0	95.8	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X1-6	6	630	1189.5	990	6016.5	95.8	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X2-6	6	670	1265.0	990	6398.5	95.8	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X3-6	6	710	1340.5	990	6780.5	95.8	0.84	IP55	F	S1	?	50	5~50	50~75	380
YE3VP80M1-8	8	0.18	0.8	665	2.3	58.7	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP80M2-8	8	0.25	1.0	665	3.2	64.1	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90S-8	8	0.37	1.3	685	4.7	69.3	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP90L-8	8	0.55	1.9	685	7.0	73.0	0.61	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L1-8	8	0.75	2.3	705	9.6	75.0	0.67	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP100L2-8	8	1.1	3.1	705	14.0	77.7	0.69	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP112M-8	8	1.5	4.1	705	19.1	79.7	0.70	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP132S-8	8	2.2	5.7	720	28.0	81.9	0.71	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP132M-8	8	3	7.5	720	38.2	83.5	0.73	IP55	F	S1	Y	50	5~50	50~100	380
YE3VP160M1-8	8	4	9.8	720	50.9	84.8	0.73	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160M2-8	8	5.5	13.1	720	70.0	86.2	0.74	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160L-8	8	7.5	17.4	720	95.5	87.3	0.75	IP55	F	S1	?	50	5~50	50~100	380
YE3VP160L-8	8	9	20.9	870	114.6	87.3	0.75	IP55	F	S1	?	60	5~50	50~100	440
YE3VP180L-8	8	11	25.2	730	140.1	88.6	0.75	IP55	F	S1	?	50	5~50	50~100	380
YE3VP200L-8	8	15	33.5	730	191.0	89.6	0.76	IP55	F	S1	?	50	5~50	50~100	380
YE3VP225S-8	8	18.5	41.0	735	235.6	90.1	0.76	IP55	F	S1	?	50	5~50	50~100	380
YE3VP225M-8	8	22	47.3	735	280.1	90.6	0.78	IP55	F	S1	?	50	5~50	50~100	380
YE3VP250M-8	8	30	63.2	730	382.0	91.3	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280S-8	8	37	77.5	735	471.1	91.8	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE3VP280M-8	8	45	93.9	735	573.0	92.2	0.79	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315S-8	8	55	111.5	745	700.3	92.5	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315M-8	8	75	151.1	745	955.0	93.1	0.81	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L1-8	8	90	178.5	745	1146.0	93.4	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L2-8	8	110	217.5	745	1400.7	93.7	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE3VP315L3-8	8	132	260.2	745	1680.8	94.0	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355M1-8	8	132	260.2	745	1680.8	94.0	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355M2-8	8	160	314.4	745	2037.3	94.3	0.82	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355M3-8	8	185	358.4	745	2355.7	94.5	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355L-8	8	200	387.0	745	2546.7	94.6	0.83	IP55	F	S1	?	50	5~50	50~100	380
YE3VP355L2-8	8	220	425.7	745	2801.3	94.6	0.83	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355X1-8	8	250	501.9	745	3183.3	94.6	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE3VP355X2-8	8	315	632.4	745	4011.0	94.6	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400M1-8	8	250	501.9	745	3183.3	94.6	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400M2-8	8	280	562.1	745	3565.3	94.6	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L1-8	8	315	632.4	745	4011.0	94.6	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L2-8	8	355	712.7	745	4520.3	94.6	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE3VP400L3-8	8	400	803.1	745	5093.3	94.6	0.80	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X1-8	8	450	892.3	745	5730.0	94.6	0.81	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X2-8	8	500	991.4	745	6366.7	94.6	0.81	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X3-8	8	560	1110.4	745	7130.7	94.6	0.81	IP55	F	S1	?	50	5~50	50~75	380
YE3VP450X4-8	8	630	1249.2	745	8022.0	94.6	0.81	IP55	F	S1	?	50	5~50	50~75	380

Contact Information

4000-999-510
